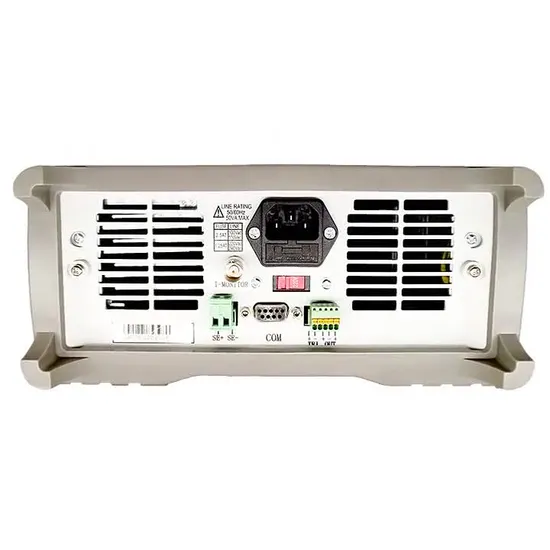

Dcl9003A Programmable DC Electronic Load 300W 500V 15A with Ripple Sampling

• Overview
• Product Description
• Detailed Photos
• Packaging & Shipping
• Company Profile

Overview

Basic Info.

Model NO.	DCL9003A
Rated Input	300W 500V 15A
Cp	0 - 300W
CV	0 - 500V
Cc	0 - 15A
Product Name	Dcl9003A Programmable DC Electronic Load 300W 500V
Feature	Short Lead Time
Transport Package	Carton
Specification	47x30x21cm
Trademark	CKT
Origin	China
HS Code	9030339000
Production Capacity	2000 Sets Per Month

Packaging & Delivery

Package Size47.00cm * 30.00cm * 21.00cm Package Gross Weight7.000kg

Product Description

https://ckt2017.en.made-in-china.com/product-list-1.html

Brief Introduction
The built-in automatic control circuit which can control the pendulum rate of the voltage and current signal
operates stable with outstanding anti-self-excited ability.
Equipped with perfect hardware-protecting function to ensure the fully protection of the instrument itself and the
measured objects.
Adopt 16-bits high speed sampling chip to ensure the sampling accuracy and resolution. Single sampling can
simultaneously refresh the voltage and current value.
With 40K sampling rate and in-built IIR digital filter, high measurement accuracy and strong anti-interference
ability can be reached at the same time.
The 4.3-inch color TFT display screen is easy to use with abundant display content.

SPECIFICATION

https://ckt2017.en.made-in-china.com/contact-info.html

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.

Product Description

Model	Power	Voltage	Current	USB interface	Serial communication	Display panel	A/D sampling rate	Basic protection	Expand protection
DCL9001	150W	150V	30A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
DCL9001A	150W	500V	10A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
DCL9003	300W	150V	30A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
DCL9003A	300W	500V	15A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
DCL9006	600W	150V	120A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
DCL9001Q Fast charging	150W	150V	6A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
DCL9001P Fast charging with UPD test	150W	150V	6A	host	RS232	4.3-inch TFT	40KHz	hardware support	hardware support
